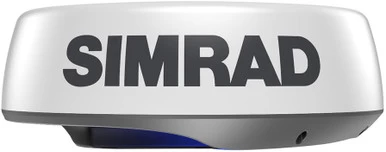

Simrad 000-14535-001 HALO24 Radar Dome W/ Doppler Technology

With industry-first 60 RPM operation at close range, the Simrad HALO24 Radar Dome offers an almost real-time view for the ultimate in collision avoidance. Instantly identify hazards with VelocityTrack Doppler technology, and enjoy simultaneous short and long-range coverage, up to 48 nautical miles, from one compact 24-inch dome antenna. Whether you’re contending with poor visibility or navigating through crowded waterways, Halo radar cuts through the clutter to provide a clear and current picture of your surroundings.

Perfect for a wide range of fishing boats, sailboats, and smaller powerboats, the Simrad HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges simultaneously in Dual Range mode, enabling you to keep an eye on far away weather cells while watching for collision hazards up close. The HALO24 radar’s pulse-compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between distant or small targets.

Get instant visual feedback on whether targets are moving away or coming towards you with VelocityTrack technology provides. Using the Doppler effect, VelocityTrack automatically checks every target seen by your radar; you don’t need to manually select individual targets, and there is no limit to the number of targets on screen at once. Potential hazards are highlighted with simple color coding, improving your situational awareness and reducing your risk of being involved in a collision.

Simrad 000-14535-001 HALO24 Radar Dome Features:

• 48 nm range from a compact 24″ dome
• Ultra-fast 60 RPM operation at ranges up to 2nm
• Simultaneous Dual Range operation sees both near and far
• Advanced pulse compression technology with beam sharpening
• VelocityTrack Doppler technology for collision avoidance
• Ready instantly from standby
• Easy operation with harbour, offshore, weather, and bird modes
• MARPA target tracking (up to 10 targets, 20 in dual range).
• Lightweight, low profile dome design, with integrated LED lights
• 10m Radar Cable

Simrad 000-14535-001 HALO24 Radar Dome Specifications:

• Outside dimensions: Diameter 610 mm (24”), Height 225 mm (8.9”)
• Scanner weight (no cable): 6.75kg (14.9 lbs)
• Power consumption (with 10M cable): Operating: 14.5 to 27W at 13.8 V
• Standby: 3.9 W (Typ.) at 13.8 V DC 170 mA
• DC input (at end of radar cable): 9 V to 31.2 V DC (12/24 V systems)
• Reverse polarity protection: Yes
• Minimum startup voltage: 10.75 V DC
• Transmitter source (pre-heating time): No magnetron – Instant On
• Operating Temperature: -25° to +55°C (-13° to +130°F)
• Relative humidity: +35° C (95° F), 95% RH
• Waterproof: IPX6
• Max relative wind velocity: 51 m/sec (100 Knots)
• Compliance: CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945 : 2002
• Radar ranges: 100M (328 ft) to 48nm with 18 range settings, (nm/sm/km)
• Rotation (mode dependent): 20 – 60 rpm (mode and MFD dependent)
• Transmitter frequency: X-band – 9.4 to 9.5 Ghz
• Transmitter source (warm-up time): No Magnetron – all solid state. Instant On
• Plane of polarization: Horizontal Polarization
• Transmitter peak power output: 25W
• Minimum range: 6M (19.7′)
• Sweep repetition frequency: 700-2400 Hz (mode dependent)
• Pulse length: 0.04 – 64 usec
• Sweep bandwidth: 48 MHz max
• Horizontal beam width (Tx and Rx antenna): 3.9° nominal (-3 dB width)
• Target Seperation Control: OFF: 3.9°+/-10% (-3 dB width nominal), LOW: 3.4°+/-10% (-3 dB width nominal), MED: 2.5°+/-10% (-3 dB width nominal), HIGH: 2.0°+/-10% (-3 dB width nominal)
• Vertical beam width (Tx and Rx antenna): 22° (-3B width nominal)
• Side lobe level (Tx and Rx antenna): Below -18 dB (within ±10°);Below -24 dB (outside ±10°)
• Noise figure: Less than 5 dB nominal
• Protocol: Ethernet 100 Base T
• Maximum inter connecting cable length: 30M (98.5′) – available as option, use NEP-2 for longer cable runs
